Vaporesso Armour Ultra 100W Kit

Shop Vaporesso Armour Ultra 100W Kit in UAE

Vaporesso Armour Ultra 100W Kit is a high-power DTL vape kit built around a 5500mAh integrated battery, up to 100W output, AXON Chip, 0.96-inch TFT display and Vaporesso iTank T with GTi Dual Mesh coils. Unlike the earlier Armour S, the Armour Ultra does not require a separate 18650 or 21700 battery because its large-capacity battery is built directly into the mod.

Vaporesso also gives the Armour Ultra IP68, IP69K and MIL-STD-810H protection certifications for the mod, together with a reinforced tank protector, protected controls and a covered USB charging port. The standard kit uses a 6ml iTank T, top adjustable airflow, sliding top filling and two new GTi Dual Mesh coils.

Key Details

• Brand: Vaporesso

• Model: Armour Ultra

• Device Type: DTL Tank Mod Kit

• Maximum Output: 100W

• Output Range: 5–100W

• Battery: 5500mAh integrated rechargeable

• External Batteries Required: No

• Charging: USB Type-C

• Charging Input: DC 9V/2A or 5V/3A

• Display: 0.96-inch TFT screen

• Chipset: AXON Chip

• Tank: Vaporesso iTank T

• Standard Tank Capacity: 6ml

• TPD Capacity: 2ml

• Included Coil 1: GTi 0.2Ω Dual Mesh, 60–75W

• Included Coil 2: GTi 0.4Ω Dual Mesh, 50–60W

• GTi 0.2Ω Best Wattage: 65W

• GTi 0.4Ω Best Wattage: 55W

• Airflow: Adjustable top airflow

• Refilling: Sliding top-fill system

• Operating Modes: Boost, Pulse, Eco and TC

• Connector: Reinforced 510

• Protection: IP68, IP69K and MIL-STD-810H on the mod

• Drop-Test Rating: 1.2m MIL-STD-810H

• Dimensions: 144.5 × 37.6 × 31mm

• Complete Kit Weight: Approximately 256g

• Mod Weight: Approximately 173g

• E-Liquid Included: No

• Fixed Nicotine Strength: No

Vaporesso directly confirms the 5500mAh battery, 100W maximum output, Type-C fast charging, 6ml iTank T, Dual Mesh coils and 0.96-inch TFT display.

5500mAh Built-In Battery

The Armour Ultra uses a large 5500mAh integrated battery rather than a replaceable 18650 or 21700 cell. Vaporesso describes its capacity as approximately comparable to the power available from two 18650 batteries while retaining a compact single-body design.

The manufacturer also claims up to three days of use from one charge under its laboratory testing conditions. That should be treated as a Vaporesso performance claim, not a guaranteed three-day battery duration for every user.

Actual battery endurance depends on:

• Selected wattage

• Coil resistance

• Boost, Pulse, Eco or TC Mode

• Puff duration

• Frequency of use

• Airflow

• Battery condition

• Individual vaping habits

Running a 0.2Ω coil near 75W will normally consume more battery power than using a higher-resistance coil at lower wattage.

Built-In Battery vs External Battery

A major difference between the Armour Ultra and Armour S is the battery design.

The Armour Ultra uses a built-in 5500mAh battery, while the Armour S requires one external 21700 or 18650 battery.

That means the Armour Ultra does not require:

• Buying a separate vape battery

• Carrying a spare 21700 cell

• Using an 18650 adapter

• Removing the battery for charging

The complete mod is charged directly through its USB Type-C port.

Up to 100W Output

The Vaporesso Armour Ultra supports an adjustable 5–100W output range.

This gives the device enough power to run the supplied GTi 0.2Ω and 0.4Ω Dual Mesh coils comfortably within their manufacturer-rated ranges.

The wattage should always be matched to the installed coil rather than automatically setting the device to 100W.

Higher wattage can increase:

• Vapour production

• Coil temperature

• E-liquid consumption

• Battery consumption

The 100W rating is the maximum available output, not the required operating wattage.

AXON Chip

The Armour Ultra uses Vaporesso's AXON Chip to manage power delivery and its multiple operating modes. Vaporesso specifically highlights the AXON platform as one of the three key performance elements alongside the iTank T and GTi Dual Mesh system.

The available operating functions include:

• Boost Mode

• Pulse Mode

• Eco Mode

• TC Mode

This allows more control than a simple fixed-output vape kit.

Boost Mode

Boost Mode is designed to prioritise strong and stable output.

Vaporesso claims Boost provides 40% more output stability than Eco Mode and 25% more than Pulse Mode in its internal testing.

These percentages are manufacturer laboratory claims.

Boost Mode can be useful when the priority is:

• Faster initial heating

• Stronger vapour output

• More intensive flavour delivery

It can also increase battery and e-liquid consumption compared with more efficiency-focused operation.

Pulse Mode

Pulse Mode is part of Vaporesso's AXON system and is designed around maintaining consistent power throughout a draw.

Compared with Boost, Pulse places less emphasis on the highest initial output while still supporting stable vapour production.

The final result depends on the wattage and coil being used.

Eco Mode

Eco Mode prioritises battery and e-liquid efficiency.

It can be useful when the priority is longer battery endurance between charges rather than maximum output.

Using Eco does not change the e-liquid's nicotine concentration.

TC Mode

The Armour Ultra also includes TC Mode, or temperature-control functionality. Vaporesso lists TC alongside Boost, Pulse and Eco among the Armour Ultra's supported operating options.

TC should only be used with a suitable heating element and configuration intended for temperature-controlled operation.

Users should not assume every GTi coil is designed for TC just because the mod includes the feature.

0.96-Inch TFT Display

The Armour Ultra uses a 0.96-inch TFT display.

The screen provides access to key operating information such as:

• Selected wattage

• Battery status

• Coil resistance

• Current mode

• Device status

This is particularly useful on a 100W mod because the user can directly monitor settings rather than relying on simple LED indicators.

USB Type-C Fast Charging

Vaporesso specifies two supported charging inputs:

9V/2A or 5V/3A through USB Type-C.

The higher charging capability is useful because the Armour Ultra contains a much larger battery than a typical compact pod kit.

For charging:

1. Connect an appropriate USB Type-C cable.

2. Use a suitable compatible power source.

3. Place the device on a stable, dry surface.

4. Keep e-liquid and water away from the charging port.

5. Monitor the device while charging.

6. Disconnect it when charging is complete.

7. Do not charge a damaged or unusually hot device.

The standard kit includes a Type-C charging cable.

IP68 & IP69K Protection

The Armour Ultra mod carries IP68 and IP69K certifications.

Vaporesso states that IP68 testing covers immersion to approximately 1 metre for 30 minutes or more, while IP69K certification covers resistance to high-pressure water jets and hot-water testing.

Importantly, Vaporesso states that these certifications apply to the mod only, under standardised third-party laboratory conditions.

The iTank T and installed coil should not automatically be treated as having the same water-resistance rating.

MIL-STD-810H 1.2M Drop Testing

The Armour Ultra mod has also passed a MIL-STD-810H 1.2 metre drop test according to Vaporesso.

The manufacturer describes testing from multiple orientations including:

• Front

• Corners

• Other drop angles

Again, the certification applies to the mod, not as a guarantee that the glass tank cannot break if dropped.

The included tank protector is therefore still important.

Reinforced Tank Protection

The Armour Ultra uses a protective framework around the iTank T.

Vaporesso highlights:

• Tank protector

• Reinforced controls

• USB port cover

• Metal cage-style frame

• Reinforced 510 connector

as key durability elements.

An extra tank protector is also included in the official package.

Vaporesso iTank T

The kit includes Vaporesso's iTank T, a 6ml refillable sub-ohm tank in the standard international configuration.

The iTank T provides:

• 6ml capacity

• Adjustable top airflow

• Sliding top filling

• GTi coil compatibility

• Tank-protector integration

A 2ml TPD version also exists for regulated markets.

For current UAE product pages, the 6ml configuration is the relevant standard unless your physical package states otherwise.

6ML Tank Capacity

Vaporesso officially lists the standard iTank T capacity at 6ml.

This larger capacity is suited to the higher liquid consumption associated with DTL coils operating around 50W to 75W.

The tank is refillable, so users can select their own bottled e-liquid.

The kit does not have:

• A fixed flavour

• A fixed nicotine strength

• A disposable pre-filled reservoir

Sliding Top-Fill Design

The iTank T uses a sliding top-fill mechanism designed for one-handed filling.

To refill:

1. Keep the device upright.

2. Slide the top section open.

3. Locate the filling port.

4. Insert the e-liquid bottle nozzle.

5. Fill without overfilling.

6. Close the top securely.

7. Wipe away excess liquid if necessary.

Always make sure the tank is properly closed before carrying the device.

Widened Top Airflow

The iTank T uses adjustable top airflow.

Vaporesso states that the widened airflow design increases air intake while aiming for quieter, smoother operation. The airflow scale allows the opening to be adjusted more precisely.

Top airflow also places the air intake away from the lower tank base, which can help reduce common bottom-airflow leakage points.

The correct wording is still leak-resistant, not leak-proof.

GTi Dual Mesh Technology

One of the biggest updates in the Armour Ultra is the introduction of GTi Dual Mesh coils.

Vaporesso describes the design as using a dual-layer mesh structure intended to heat e-liquid more evenly.

The manufacturer claims the new design extends coil lifespan by 30% compared with its reference technology. This is a Vaporesso laboratory claim and actual coil life depends on liquid, wattage and use.

GTi 0.2Ω Dual Mesh Coil

The kit includes a GTi 0.2Ω Dual Mesh Coil pre-installed.

Vaporesso officially rates it at:

60–75W

with a listed best operating point of:

65W.

The 0.2Ω coil is the higher-output option of the two included coils.

It generally provides:

• Higher vapour production

• More open DTL performance

• Faster e-liquid consumption

• Higher battery consumption

GTi 0.4Ω Dual Mesh Coil

The box also contains a GTi 0.4Ω Dual Mesh Coil.

Vaporesso rates it at:

50–60W

with a recommended best point of:

55W.

Compared with the 0.2Ω coil, the 0.4Ω version generally operates at lower wattage and consumes less battery and e-liquid.

0.2Ω vs 0.4Ω Dual Mesh

Feature	GTi 0.2Ω Dual Mesh	GTi 0.4Ω Dual Mesh
Included	Pre-installed	In box
Power Range	60–75W	50–60W
Best Listed Wattage	65W	55W
Vapour Output	Higher	More moderate
Battery Use	Higher	Lower
E-Liquid Consumption	Higher	Lower
Style	DTL	DTL

Both are manufacturer-confirmed components of the Armour Ultra kit.

Compatible With the Wider GTi Coil Platform

The iTank T is also compatible with the broader Vaporesso GTi coil family.

Vaporesso currently lists compatibility with:

• GTi 0.15Ω Dual Mesh

• GTi 0.15Ω Mesh

• GTi 0.2Ω Mesh

• GTi 0.4Ω Mesh

• GTi 0.5Ω Mesh

in addition to the supplied 0.2Ω and 0.4Ω Dual Mesh options.

The exact wattage should always be matched to the coil.

For example:

• GTi 0.15Ω Dual Mesh: 75–90W, best 85W

• GTi 0.15Ω Mesh: 75–90W, best 85W

• GTi 0.2Ω Mesh: 60–75W, best 65W

• GTi 0.4Ω Mesh: 50–60W, best 55W

• GTi 0.5Ω Mesh: 30–40W, best 35W

The Armour Ultra's 100W ceiling comfortably covers these manufacturer-listed GTi ranges.

Reinforced 510 Connector

The Armour Ultra uses a reinforced 510 connector. Vaporesso specifically highlights this part of the mod as being designed for added strength and stability.

The standard kit is optimised around the iTank T, but the 510 connection also makes the mod structurally different from a proprietary pod system.

Users should still make sure any alternative tank is electrically appropriate for the mod and does not exceed safe operating limits.

144.5 × 37.6 × 31MM Dimensions

Vaporesso officially lists the complete Armour Ultra kit dimensions as:

144.5 × 37.6 × 31mm.

The complete kit weighs approximately:

256g.

Vaporesso separately gives the mod body weight at approximately 173g.

25% Smaller & Lighter Than Armour S

Vaporesso claims the Armour Ultra mod is approximately 25% smaller and 25% lighter than the Armour S configuration used in its comparison testing, despite carrying a large integrated battery.

This is a manufacturer comparison claim.

It is intended to highlight the energy-density advantage of the built-in 5500mAh battery system rather than suggesting the complete Armour Ultra kit is a lightweight compact pod vape.

At 256g with tank, it remains a substantial DTL kit.

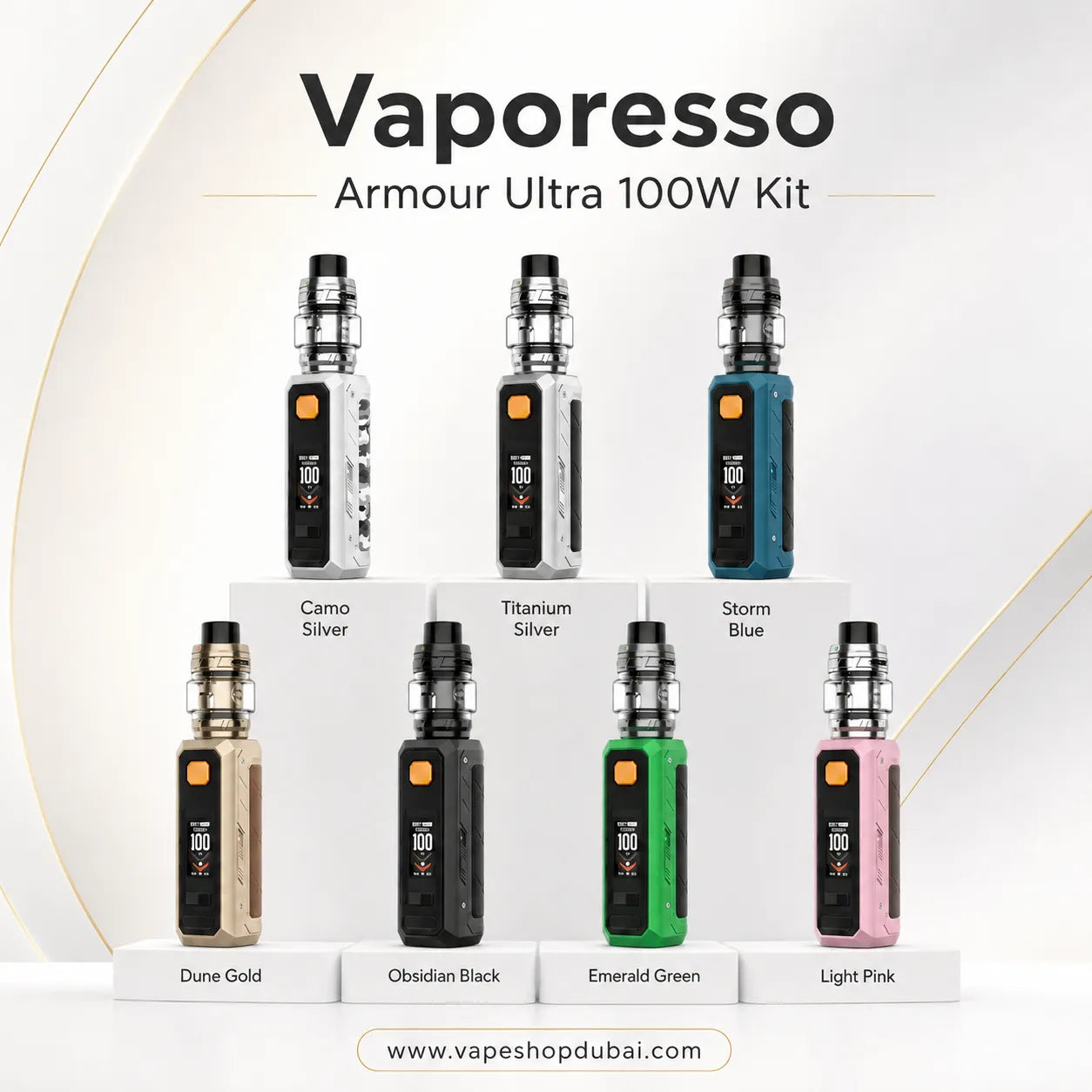

Vaporesso Armour Ultra Colours

Vaporesso currently lists seven official finishes:

• Obsidian Black

• Camo Silver

• Dune Gold

• Emerald Green

• Titanium Silver

• Storm Blue

• Light Pink

Only add colours that are actually available in your UAE inventory as Shopify variants.

What Is Included in the Vaporesso Armour Ultra Kit?

Vaporesso's official standard package includes:

• 1 × Vaporesso Armour Ultra Battery

• 1 × Vaporesso iTank T 6ml

• 1 × GTi 0.2Ω Dual Mesh Coil, pre-installed

• 1 × GTi 0.4Ω Dual Mesh Coil

• 1 × USB Type-C Charging Cable

• 1 × Refilling Silicone Plug

• 2 × O-Rings

• 1 × Extra Glass Tube

• 1 × Extra Tank Protector

• 1 × User Manual & Warranty Card

E-liquid is not included in Vaporesso's official package list.

Does the Armour Ultra Contain Nicotine?

No.

The Vaporesso Armour Ultra kit itself contains no fixed nicotine strength.

Nicotine depends entirely on the bottled e-liquid added to the iTank T.

Because the supplied GTi coils are designed for high-power DTL operation, e-liquid choice should be appropriate for sub-ohm use.

Do not assume a high-strength nicotine liquid intended for a small MTL pod is automatically suitable for a 60–75W DTL coil.

Suitable E-Liquid Type

The supplied 0.2Ω and 0.4Ω GTi Dual Mesh coils are high-output sub-ohm coils.

They are generally suited to e-liquids formulated for DTL vaping, commonly with:

• Lower nicotine concentrations

• Higher VG ratios

• Larger vapour production

The exact e-liquid should be chosen according to coil resistance, manufacturer guidance and individual requirements.

How to Set Up the Vaporesso Armour Ultra

1. Remove the kit from its packaging.

2. Confirm the correct GTi coil is installed.

3. If installing a new coil, add a small amount of e-liquid to accessible cotton openings where appropriate.

4. Install the coil securely in the iTank T.

5. Open the sliding top-fill section.

6. Fill the 6ml reservoir with suitable e-liquid.

7. Close the tank securely.

8. Allow a fresh coil several minutes to saturate.

9. Turn on the mod.

10. Confirm the detected coil resistance.

11. Select an appropriate wattage within the coil's range.

12. Adjust the top airflow.

13. Inhale while pressing the fire button.

14. Recharge through Type-C when required.

Do not fire a new coil before its cotton has been properly saturated.

When to Replace a GTi Coil

Replace the coil when you notice persistent symptoms such as:

• Burnt flavour

• Significant flavour reduction

• Reduced vapour

• Darkened e-liquid caused by coil residue

• Persistent flooding or performance deterioration

GTi coils are replaceable, so there is no need to discard the entire iTank T when the heating element reaches the end of its life.

Is the Armour Ultra Refillable?

Yes.

The Vaporesso Armour Ultra is both:

Rechargeable: Its 5500mAh battery can be recharged.

Refillable: The 6ml iTank T can be filled repeatedly with compatible bottled e-liquid.

Coil-replaceable: GTi coils can be removed and replaced separately.

This makes it fundamentally different from a disposable vape.

Armour Ultra vs Armour S

Feature	Armour Ultra	Armour S
Maximum Output	100W	100W
Battery	Built-in 5500mAh	1 × 21700/18650
Battery Included	Yes	No
Tank	iTank T	iTank 2
Standard Capacity	6ml	5ml
Display	0.96" TFT	0.96" TFT
Charging	9V/2A or 5V/3A	5V/2A
Protection	IP68/IP69K/MIL-STD-810H	Rugged Armour design
Maximum Wattage	100W	100W

The main change is therefore battery architecture, durability certification, newer iTank T design and Dual Mesh coil technology, rather than simply a higher wattage.

Armour Ultra vs Armour Max

The Armour Max is the larger dual-battery option in the family.

Vaporesso officially specifies the Armour Max at:

• Two 21700 or 18650 batteries

• Up to 220W

• 8ml iTank 2

while the Armour Ultra uses:

• Built-in 5500mAh battery

• Up to 100W

• 6ml iTank T

For users who do not need more than 100W, the Ultra provides a simpler integrated-battery configuration.

How to Check Vaporesso Armour Ultra Authenticity

Vaporesso operates an official anti-counterfeit verification system.

To check a Vaporesso product:

1. Keep the original retail package.

2. Locate the security label.

3. Scratch the verification area if required.

4. Scan the official security QR code.

5. Make sure the resulting site belongs to Vaporesso.

6. Enter the manufacturer's verification code manually when required.

7. Review the verification result.

Using Vaporesso's official verification service is preferable to relying only on packaging appearance.

Storage & Battery Care in UAE Conditions

The Armour Ultra contains a large integrated lithium battery, so excessive heat should be avoided.

Store the kit:

• Away from direct sunlight

• Away from children and pets

• Away from open flames

• Away from water when the tank or charging port is exposed

• In a dry location

• Where the glass tank cannot be crushed

Avoid leaving the device inside a parked vehicle during hot UAE weather.

Although the mod itself has IP68/IP69K certification, Vaporesso explicitly states that these tests apply to the mod only. The tank, coil and e-liquid system should still be treated carefully around water.

Stop using or charging the device if you notice:

• Battery swelling

• Unusual overheating

• Severe impact damage

• Damaged Type-C port

• Internal liquid ingress

• Cracked tank glass

Who Is the Vaporesso Armour Ultra For?

From a specification standpoint, the Vaporesso Armour Ultra 100W Kit may be relevant to experienced adult users looking for:

• High-power DTL performance

• Up to 100W adjustable output

• Large 5500mAh built-in battery

• No separate 18650 or 21700 battery requirement

• 6ml refillable tank

• GTi Dual Mesh coils

• Top adjustable airflow

• Sliding top filling

• Boost, Pulse, Eco and TC modes

• 0.96-inch TFT display

• USB Type-C fast charging

• IP68 protection

• IP69K protection

• MIL-STD-810H drop testing

• Replaceable GTi coils

• User-selected e-liquid

It may be less suitable for someone specifically looking for a small MTL pod system, pre-filled disposable vape or low-output device.

Frequently Asked Questions

What battery does the Vaporesso Armour Ultra use?

It uses a manufacturer-confirmed 5500mAh integrated rechargeable battery.

Does the Armour Ultra need an external battery?

No. The 5500mAh battery is built into the mod.

What is the maximum wattage?

The Armour Ultra provides up to 100W, with an output range of 5–100W.

What tank comes with the Armour Ultra?

The standard kit includes the Vaporesso iTank T.

What is the tank capacity?

The standard iTank T capacity is 6ml, with a 2ml TPD version also available.

Which coils come with the kit?

The kit includes a GTi 0.2Ω Dual Mesh Coil pre-installed and a GTi 0.4Ω Dual Mesh Coil in the box.

What wattage should I use with the 0.2Ω Dual Mesh coil?

Vaporesso rates it at 60–75W, with 65W listed as best.

What wattage should I use with the 0.4Ω Dual Mesh coil?

Vaporesso rates it at 50–60W, with 55W listed as best.

Does it support older GTi coils?

Yes. Vaporesso states that the iTank T is compatible with the wider GTi coil platform, including 0.15Ω, 0.2Ω, 0.4Ω and 0.5Ω options.

Does the Armour Ultra have adjustable airflow?

Yes. The iTank T includes precision adjustable top airflow.

Is the tank top fill?

Yes. The iTank T uses a sliding top-fill design.

Does it have a screen?

Yes. Vaporesso specifies a 0.96-inch TFT display.

What modes does it have?

The Armour Ultra supports Boost, Pulse, Eco and TC Modes.

Is it waterproof?

The mod has IP68 and IP69K certifications under Vaporesso's stated test conditions. These certifications apply to the mod only, not automatically to the iTank T.

Is it drop resistant?

The mod has passed a 1.2m MIL-STD-810H drop test according to Vaporesso.

Does it use USB Type-C?

Yes. Charging is through USB Type-C.

What charging speed does it support?

Vaporesso specifies 9V/2A or 5V/3A input.

What are the dimensions?

The complete kit measures 144.5 × 37.6 × 31mm.

How much does it weigh?

The complete kit is listed at approximately 256g, while Vaporesso gives the mod itself a weight of approximately 173g.

Is the Armour Ultra refillable?

Yes. The iTank T is a refillable tank.

Does the kit contain nicotine?

No. The kit itself has no fixed nicotine strength. Nicotine depends on the e-liquid added to the tank.

Does e-liquid come with the kit?

No e-liquid appears in Vaporesso's official package list.

Which colours are available?

Vaporesso currently lists Obsidian Black, Camo Silver, Dune Gold, Emerald Green, Titanium Silver, Storm Blue and Light Pink.

Vaporesso Armour Ultra 100W Kit in UAE

Vaporesso Armour Ultra 100W Kit in UAE combines a manufacturer-confirmed 5500mAh built-in battery, 5–100W output, 6ml iTank T, 0.96-inch TFT screen, GTi Dual Mesh coils and AXON Chip in a rugged DTL platform.

The included GTi 0.2Ω Dual Mesh and 0.4Ω Dual Mesh coils cover 60–75W and 50–60W respectively, while the tank remains compatible with the wider GTi coil family. Adjustable top airflow and sliding top filling make the iTank T easier to configure and refill.

For durability, Vaporesso certifies the mod to IP68, IP69K and MIL-STD-810H 1.2m drop-test standards, although those certifications apply specifically to the mod rather than the complete glass-tank assembly.

The large integrated battery also removes the need to purchase separate 18650 or 21700 cells, while 9V/2A or 5V/3A Type-C charging provides a higher charging specification than many earlier Armour devices.

For adult users only. The kit itself contains no nicotine, but compatible e-liquids may contain nicotine. Nicotine is addictive. Keep the device and e-liquids away from children and pets.
